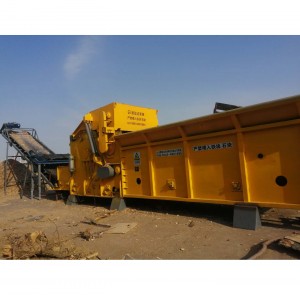

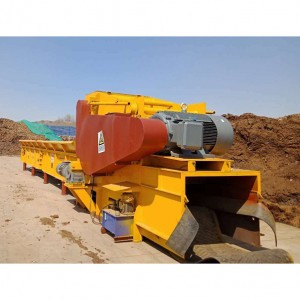

Drum wood chipper FD3113

Short Description:

Product Name:Drum wood chipper

Model:FD3113

Power Type: Electric engine

Application:Cut wood log into chips

Rotor diameter: 1300mm

Blade number: 3sets*2  (as customer’s requirement)

Feed-in size: 700*600mm

Process Log max diameter:450-500mm

Wood chip length:30-120mm(as customer’s requirement)

Main motor power: 315kw

Production Capacity:30-40 ton/hour

Discharge way: belt conveyor


Product Detail

Product Tags

Drum-style Wood Chipper Series are  equipments to manufacture wood chips ,The raw material are logs,bamboo,tree branches,tree barker,wood leavings by sawmill and the non-wood material such as sugarcane,reed and crops. It is widely used biomass power station,biomass pellet plant,silicon smelting,fuel boilers, paper mill,fiber board plant ,organic fertilizer plant and so on.This kind of machinery can be customized according to the customer’s requirements(the main power,capacity,number of knives,roller diameter, the feed size and so on).

Products Name:Drum wood chipper

Model Number: FD3113

Rotor diameter: 1300mm

Blade number: 3*2 pieces

Blade size:650*220*20mm

Feed-in size: 700*600mm

Process Log max diameter:500mm

Wood chips length:30-120mm

Main motor power: 315 kw

Production Capacity: 30-40 tons per hour

Feed roller motor power:11kw*2

Primary discharge motor power:5.5kw

Secondary discharge motor power:7.5kw

Certification: ISO9001-2008 and CE Certificate

Warranty: 1 year

After-sales Service: Engineers available to service machinery overseas
