Biomass Shredder FD1300

Short Description:

Place of Origin :shandong

Brand Name :FD1300

Certification :ISO,CE CERTIFICATE

Model Number :FD800-500, FD1250-500, FD1300-500,FD1400-600

MOQ :1 SET

Price :US $21,500-31,900 / Set

Packaging Details :container loading

Delivery Time :within 20 days

Payment Terms :T/T or L/C at sight, Western Union

Supply Ability :300 sets/year

Condition :New

Inlet Diameter :1300-500

Engine :Electric motor or Diesel Engine 400HP

Raw material :Tree , Log, Wood Pallet, Waste wood, etc

Capacity :12-30 tons/Hour

Using Place :Power plant, etc

Feeding belt :6 meters

Discharging belt :10 meters


Product Detail

Product Tags

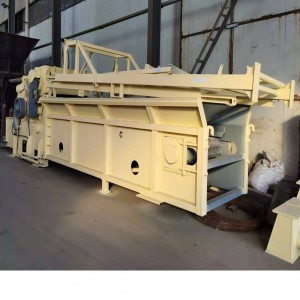

Biomass Wood Crusher Machine is mainly used for construction plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

Parameter Of Host System

Model FD1300-500
Feeding Inlet 1300*500MM
Blade Roller Diameter 800MM
Blade Roller Speed 926RPM
Capacity 18-22T/Hour
YG8 Hammer Blade Quantity OR Blades 20-24 pcs hammers or 3sets blades
Max Processing Wood Diameter 300MM
Diesel Engine Power or Electric Power 400HP or 160KW
Wood Chipper Size 20-40MM
Working Life Of the Hammer Blades 4000T-6000T

Parameter Of Feeding System

Model FD1300-500
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 1230MM
Conveyor Length 6000MM
Feeding Speed 2-18M/Min
Chain Material Q235
Feeding Way Grabbing
Gear Box Hard Teeth Faces

Parameter Of Discharging System

Model FD1300-500
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Size 10M*1.2M(Length*Width)
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM

Intelligent Electronic Control System

Model FD1300-500
Large Control Cabinet Ground
Host Start Model Soft Start
Feeding Speed Control Model Frequency,Forward n backward,Stop
Electrical Control Control Cabinet + Remote Control

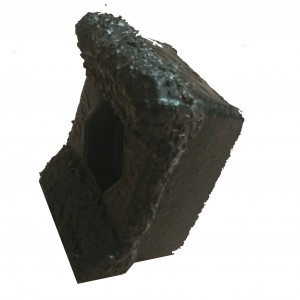

BLADE
hammer
wood chips
