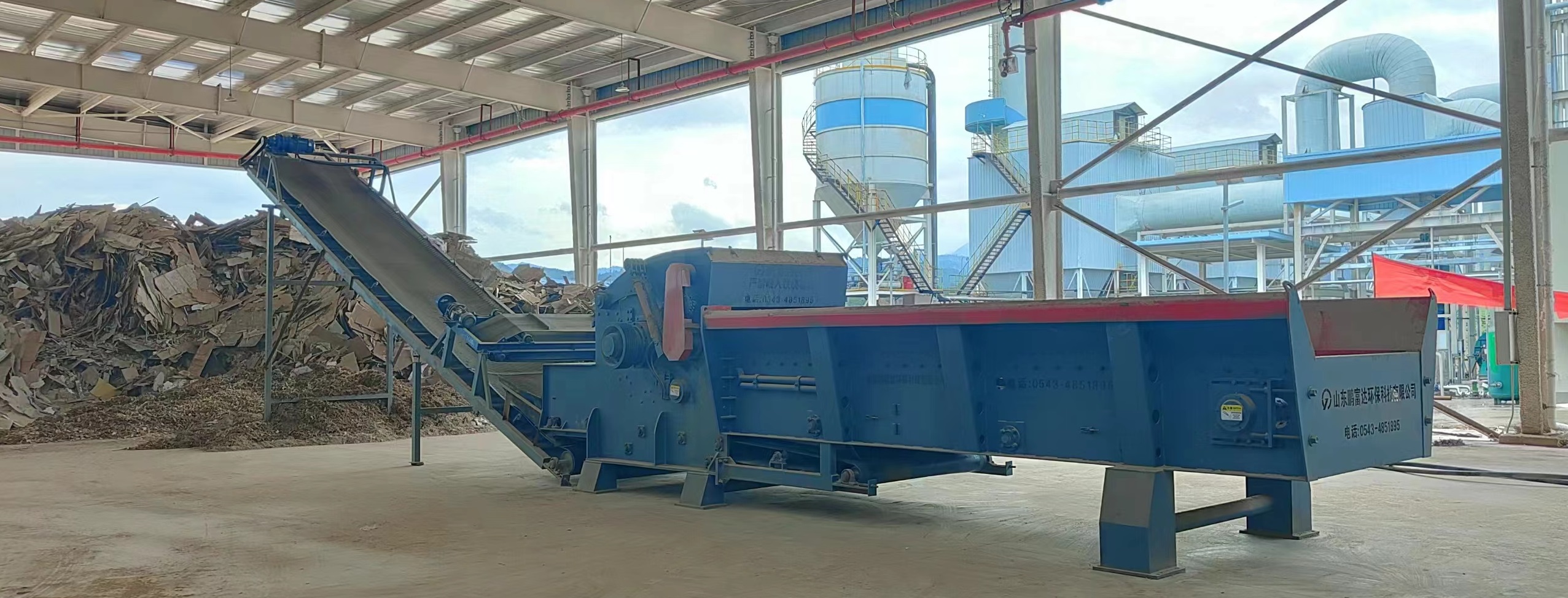

Wood Chipper Shredder Machine for waste wood pallet

Short Description:

Place of Origin :shandong

Brand Name :PFD

Certification :ISO & CE

Model Number : FD1250-500, FD1300-500,FD1400-600

MOQ :1 SET

Price :US $21,500-31,900 / Set

Packaging Details :40HQ

Delivery Time :within 20 days

Payment Terms :T/T or L/C at sight

Supply Ability :300 sets/year

Condition :New

Inlet Diameter :1400X600

Engine :160kw

Raw material :Tree , Log, Wood Pallet, Waste wood & veneer,ect

Capacity :12-30 tons/Hour

Using Place :Power plant, bioler users,wood pellet producers

Feeding belt :6 meters

Discharging belt :10 meters


Product Detail

Product Tags

https://www.youtube.com/watch?v=ZC1ymnlSQUg

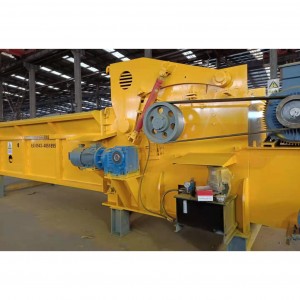

FD1400-600 Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises and wood pellet producers.

Technical Parameter Of Host System Equipment

Model FD1400-600
Feeding Inlet 1400*600MM
Blade Roller Diameter 800MM
Blade Roller Speed 888RPM
Capacity 15-20T/Hour

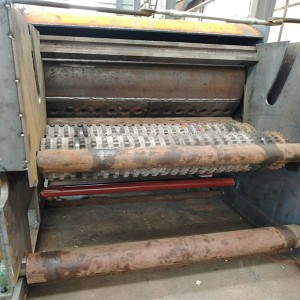

YG8 Hammer Blade Quantity OR Blades 24 pcs hammers or 2sets blades
Max Processing Wood Diameter 300MM
Diesel Engine Power or Electric Power 400HP or 160KW
Wood Chipper Size 20-40MM
Working Life Of The Hammer Blades 4000T-6000T

















Technical Parameter Of Feeding System

Model FD1400-600

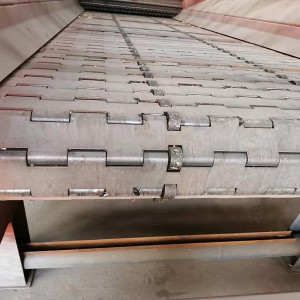

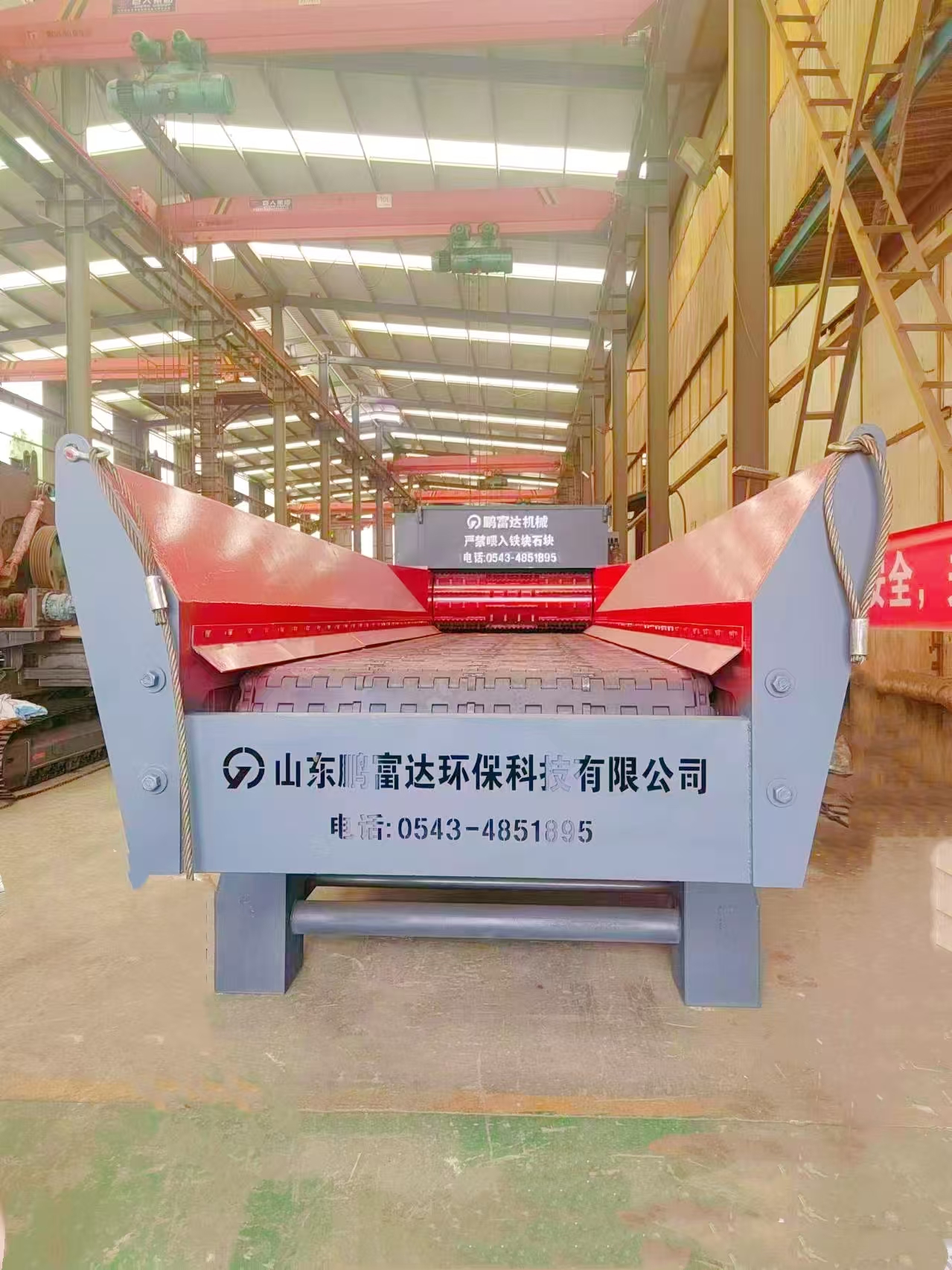

Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 1380MM
Conveyor Length 6000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Gear Box Hard Teeth Faces













Technical Parameter Of Discharging System

Model FD1400-600

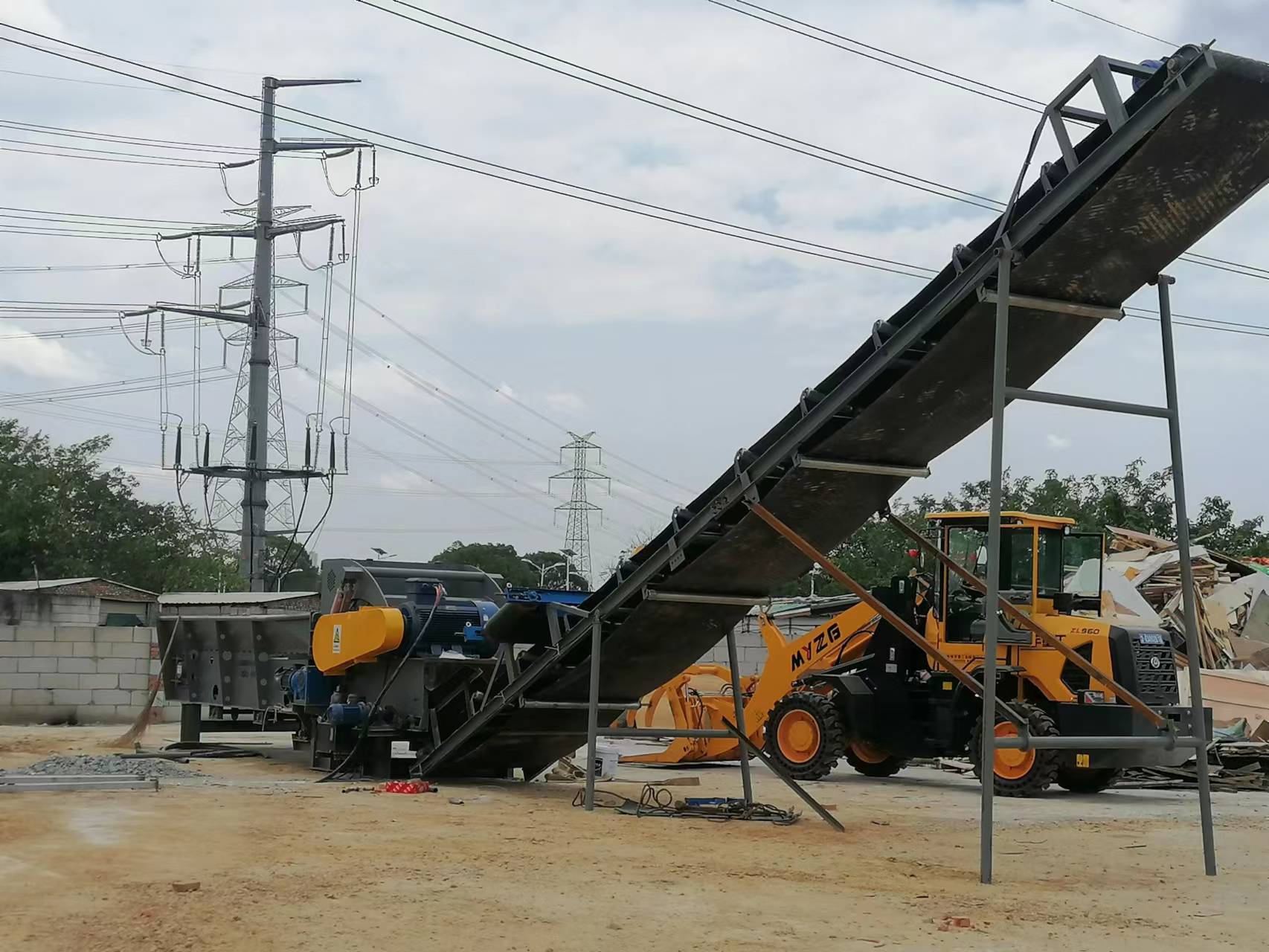

Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10000mm*1200mm
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM













Intelligent Electronic Control System

Model FD1400-600
Large Control Cabinet Ground
Host Start Model Soft Start
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + 2 Sets Of Remote Control

High Efficiency Hydraulic System

Model FD1400-600
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 60L
