Biomass Comprehensive Crusher/Wood Chipper FD2000-1000

Short Description:

Key Attributes

Product Name:Biomass comprehensive crusher

Raw material: Wood log, Wood blocks, Wood chips, Scrap wood

Application:Crush waste wooden material into required size chips

Roller diameter: 1400mm

Port:Qingdao Port综合破碎机系列 (1)

Supply Ability:10 Sets  per month

Applicable Industries: Manufacturing Plant,Farms,Home Use,Energy&Mining

Condition:New

Place of Origin:Shandong, China

Brand Name:Pengfuda

Voltage:380v/400v/415v/440v

Power:380-400 kw

Certification:   CE certificate

Warranty:1 Year



综合破碎机系列 (2)

综合破碎机系列 (3)

综合破碎机系列 (4)

综合破碎机系列 (5) 综合破碎机系列 (6) 综合破碎机系列 (1)


  • :
  • :
  • Product Detail

    Product Tags

    Introduction:

    Biomass shredder /crusher is applied for processing large waste wood pallets, furniture scrap, tree bark,core,wood branches and variety of non wood raw materials such as all kinds of bulk straw, cotton stalk, reed and other crop waste into required size chips . It can be matched with the unpacking machine.It is applied  for the biomass power station, pellet plant,paper plant,fiber board factory, pharmaceutical factory,chemical plant,organic fertilizer plant ,animal husbandry and etc.

    It is an ideal equipment and best choice of the Biomass power station.It is widely used for the preparing raw material in the industrial boiler, bio-power plant and pellet  factory.

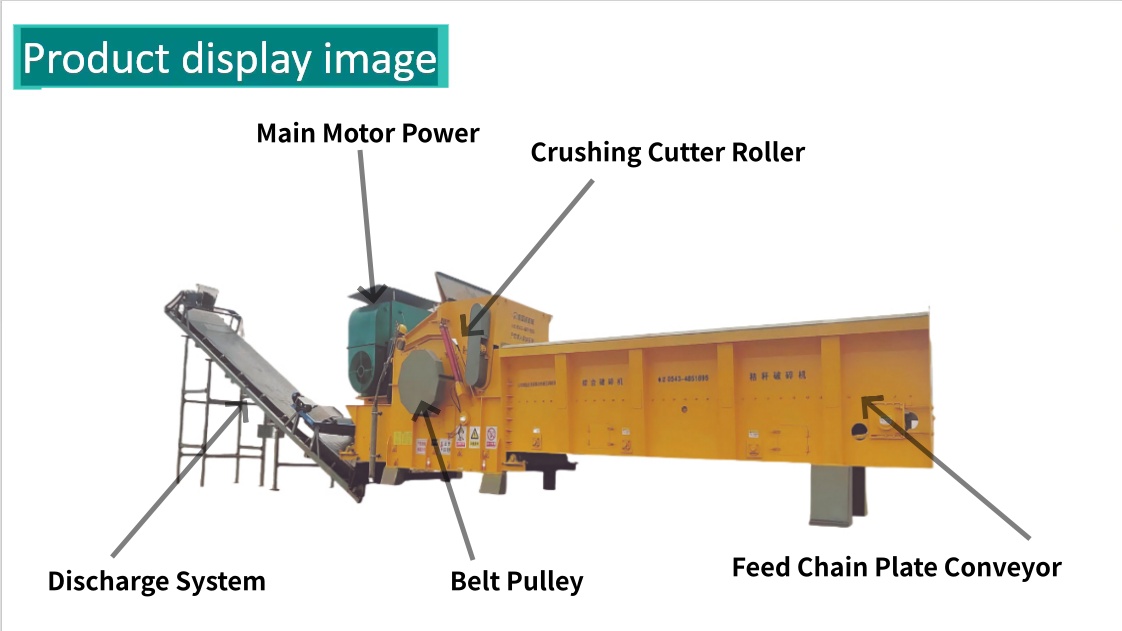

    It contains feed-in system,working system,discharge sysytem and advanced electronic control system.It is featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.

    Type: Drum Wood Chipper

    Model Number: FD2000-1000

    Power Type: Electric

    Application:building templates,waste wood material,tree bark,waste plywood,offcut,branches,crops and crop waste

    Discharge mode:belt conveyor

    Certification: ISO9001-2008 and CE certificates

    Warranty: 1 year

    After-sales Service Provided: Engineers available to service machinery overseas

    Feed-in system parameter

    Working system

    Type grooved chain plate transmit Rotor diameter 1400mm
    model FD2000-1000 capacity 40 ton/hour up
    Feed-in power 18.5kw+15kw Feed-in size 2000-1000mm
    Chain plate width 2000mm Main power 355kw
    Transmit length 5000mm Chip length 50-150mm
    Transmit speed 2-18m/min Alloy hammer 32 pieces
