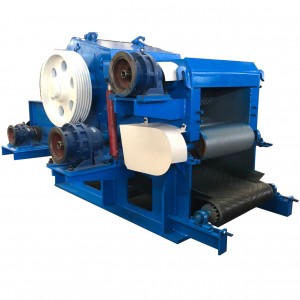

Factory Price Industrial Drum Wood Chipper Shredder Machine For Sale

Short Description:

Product Name:Drum wood chipper

Model:FD218

Power Type: Electric engine

Application:Cut wood log into wood chips

Rotor diameter: 800mm

Blade number:2 pieces (as customer’s requirement)

Feed-in size: 300*700mm

Process Log max diameter:300mm

Wood chip length:30-50mm(as customer’s requirement)

Main motor power:110kw

Total power:129.5kw

Production Capacity:8-12ton/hour

Discharge way: 10 Meters belt conveyor


Product Detail

Product Tags

Wood chipper  is a special equipment of biomass energy power plant for fuel reserve. With the widely raw material it can be crushed, such as all kinds of trees, undersized log, timber cutting residues such as branches, wood processing residues (such as slab, batten, log core, building templates and so on), Also some non-wooden raw materials (such as waste of flax, reed, bamboo, maize straw, cotton stalk, etc.).

The industrial drum wood chipper especially supply high quality wood chips in processing of raw material for pulp paper, MDF, OSB, particle board, fuel of power plant and boilers plant.

Technical Parameter Of Host System

Model FD218
Feeding Inlet 700*400MM

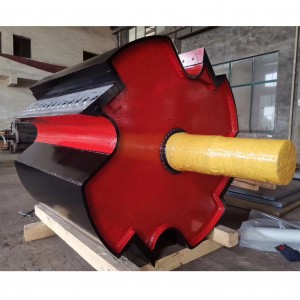

Blade Roller Diameter 800MM
Blade Roller Speed 556RPM
Capacity 8-12 T/Hour
YG8 Hammer Blade Quantity OR Blades 2-4 blades
Max Processing Wood Diameter 300MM
Feed roller form  8 pieces

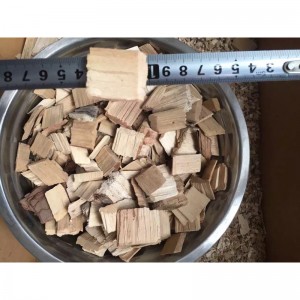

Wood Chipper Size 20-50MM(as customers’requirement)
Working Life Blades  As wood hardness

Technical Parameter Of Feeding System

Model FD218
Feeding Motor Power (up and down) 4KW+5.5KW
Feeding conveyor width 700 MM
Conveyor Length 4700MM/6000MM
Feeding Speed 20-36 M/Min
Belt  Material 4-6 Nylon belt conveyor
Gear Box Hard Teeth Faces

Technical Parameter Of Discharging System

Model FD218
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material Channel/ Square Tube
Conveyor Length*Width 10M*800MM
Conveyor Material Nylon 4 Layer
