Mobile Wood Shredder Wood Chipper with Magnet

Short Description:

Place of Origin :shandong

Brand Name :PFD

Certification :ISO,CE certificate

Model Number :FD800-500,FDY1400-600

MOQ :1 SET

Packaging Details :container loading

Delivery Time :within 20 days

Payment Terms :T/T or L/C at sight

Supply Ability :50 sets/month

Condition :New

Inlet Diameter :1400-600

Engine : Diesel Engine 400HP

Raw material :Tree , Log, Wood Pallet, Waste wood, etc

Capacity :12-30 tons/Hour

Using Place :Power plant, etc

Feeding belt :6 meters

Discharging belt :10 meters


Product Detail

Product Tags

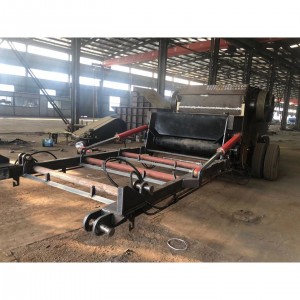

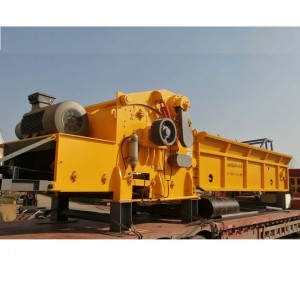

FDY1400-600 Mobile  Wood Crusher  is mainly used for waste plywood, wasted wood pallet, tree bark, slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding conveyor system, folding discharge rack and intelligent electrical control. Mobile Diesel Crusher is mainly used for places with no power output (Gobi desert, hills, woodland, hills, etc.), suitable for processing logs, branches, straw, vegetables, landscaping, garbage crushing etc.; All types of crushers and chippers can be made into a mobile folding type, and there are three mobile forms: steel wire tires, crawlers and vehicles, customers can choose and match at customers' requirements.

Technical Parameter Of Host System Equipment

Model FDY1400-600
Feeding Inlet 1400*600MM
Blade Roller Diameter 800MM
Blade Roller Speed 888 RPM
Capacity 15-20T/Hour
YG8 Hammer Blade Quantity OR Blades 22 pcs hammers or 2sets blades
Max Processing Wood Diameter 300MM
Diesel Engine Power or Electric Power 400HP or 160KW
Wood Chipper Size 30-50 MM
Working Life Of THE Hammer Blades 4000T-6000T

Technical Parameter Of Feeding System

Model FDY1400-600
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 1380MM
Conveyor Length 6000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Position Limited Wheel 5
Gear Box Hard Teeth Faces

Technical Parameter Of Discharging System

Model FDY1400-600
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10m*1.2m
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM

Intelligent Electronic Control System

Model FDY1400-600
Large Control Cabinet Fixed on the machine
Main Power Diesel engine +generator set
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + Remote Control



High Efficiency Hydraulic System

Model FDY1400-600
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 60L
