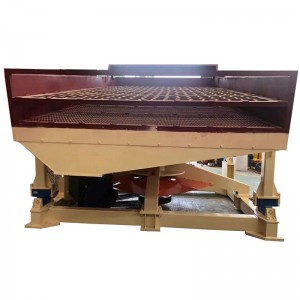

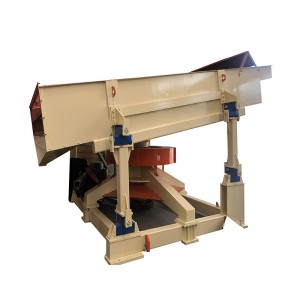

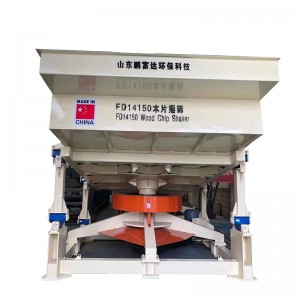

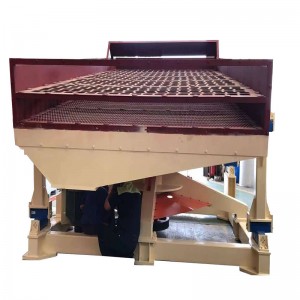

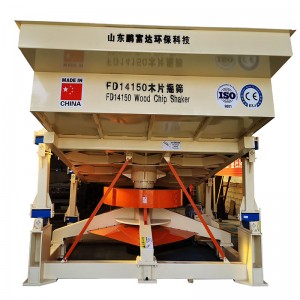

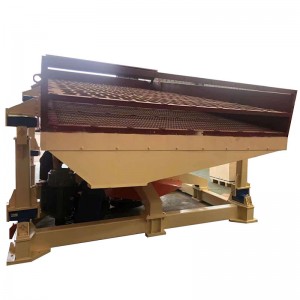

Vibrating Screen Siever Machine

Short Description:

Products Name:Vibrating machine FD14150
Application:screen/seperate  uniform wood chips from sawdust
Application Industries: MDF factories,silicon smelting plants,pellet mill plants,paper pulp plant and so on
Loading Port: Qingdao,China
Brand Name :P FD
Place of Origin :shandong
Certification :ISO & CE
Model : FD14150
Packaging Details :40HQ
Delivery Time :within 20-25 days
Payment Terms :T/T or L/C at sight
Supply Ability :300 sets/year
Condition :New

Product Detail

Product Tags


The machine adopts a conventional screen frame structure, which is very convenient to replace the screen. It is an ideal equipment for silicon plants and MDF board raw material preparation sections. It is mainly used for sorting wood chips or wood shavings of different sizes in the production process of wood chips or wood shavings. Its sorting specification can be got by changing screens with different mesh sizes. The main bearing adopts the original imported SKF special vibration bearing, and the elastic support unit adopts the original Swiss imported ROSTA brand, model AK60.

The screen frame of our Company is newly designed, firm and reliable. The screen frame adopts overall heat treatment. PengFuDa's screening equipment has completely improved the phenomenon that the industry screen frame is generally easy to crack. The wood chip screen base is exclusively used in the industry for large-scale CNC vertical milling integral processing, with high precision, stable operation and durable.

The screen frame design of PengFuDa is equipped with a wood chip buffer device, which effectively enhances the screening effect, reduces the impact of wood chips on the screen, and greatly reduces the work intensity of workers to clean the screen. The overall technical performance of Peng Fuda screening equipment is domestically leading and has a good reputation in the industry It is widely welcomed by users.

Parameter of vibrating machine

Model FD14150
Screen area(m2) 15
Capacity(m3/h) 320-380
Screen layer number 2 layers(customized )
Inclination 10 degree
Vibration frequency(rmp) 200
Eccentricity(mm) 20-35
Motor(kw) 18.5
