Waste Pallet Wood Chipper Machine/ Industrial Wood Crusher Equipment

Short Description:

Place of Origin :shandong

Brand :PFD

Certification :ISO & CE Certificate

Model Number :FD218,FD1250-500, FD1400-500

MOQ :1 SET

Packaging Details :container loading

Delivery Time :within 20 days

Payment Terms :T/T or L/C at sight, Western Union

Supply Ability :500 sets/year

Condition :New

Inlet Diameter :700*400,1250*500,1400*500

Engine :Electric motor or Diesel Engine 400HP

Raw material :Tree , Log, Wood Pallet, Waste wood, etc

Capacity :12-30 tons/Hour

Using Place :Power plant, etc

Feeding belt :6 meters

Discharging belt :10 meters


Product Detail

Product Tags

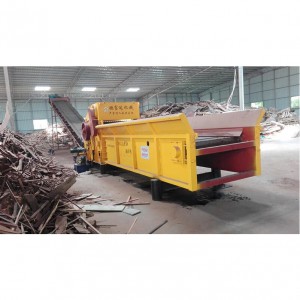

FD1400-500  Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

Technical Parameter Of Host System

Model FD1400-500
Feeding Inlet 1400*500MM
Blade Roller Diameter 800MM
Blade Roller Speed 888RPM
Capacity 15-22T/Hour
YG8 Hammer Blade Quantity OR Blades 22 pcs hammers or 2sets blades
Max Processing Wood Diameter 300MM
Diesel Engine Power or Electric Power 400HP or 160KW
Wood Chipper Size 20-50MM(as customers’requirement)
Working Life Of THE Hammer Blades 4000T-6000T

















Technical Parameter Of Feeding System

Model FD1400-500
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+5.5KW  Frequency motor
Chain Plate Width 1370MM
Conveyor Length 4700MM/6000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Gear Box Hard Teeth Faces















Technical Parameter Of Discharging System

Model FD1400-500
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10M*1M
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM















Intelligent Electronic Control System

Model FD1400-500
Large Control Cabinet Ground
Host Start Model Soft Start
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + Remote Control





High Efficiency Hydraulic System

Model FD1400-500
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 60L
