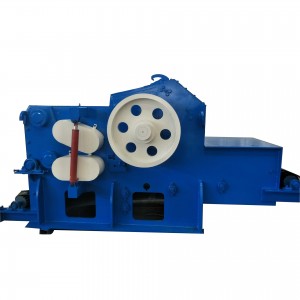

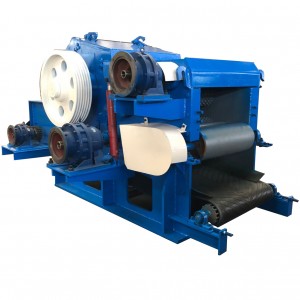

Wood chipper 8-12 T/H Factory shredder large forest professional crusher FD218

Short Description:

Place of Origin :shandong

Brand Name :PFD

Certification :ISO & CE

Model Number : FD218


Packaging Details :1x20FCL

Delivery Time :within 20 days

Payment Terms :T/T ,30% deposit in advance,70% balance before shipment.

Supply Ability :300 sets/year

Condition :New

Inlet Diameter :700*300

Engine :110kw

Raw material :Tree , Log, Waste wood & veneer,ect

Capacity :8-12 tons/Hour

Using Place :Power plant, bioler users,wood pellet producers,pulp wood chips

Feeding belt :6 meters

Discharging belt :10 meters

Product Detail

Product Tags

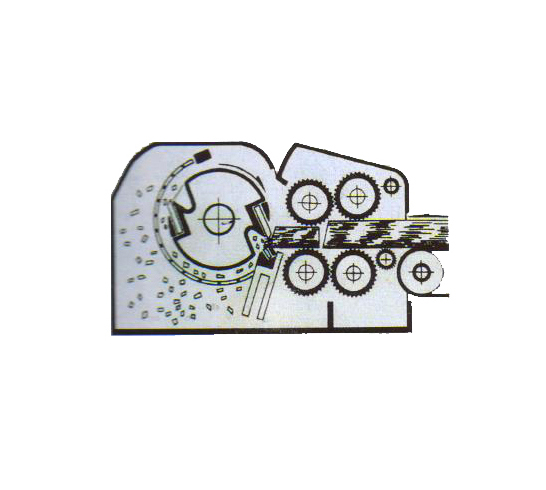

Working principle


Drum Wood Chippers are equipments to manufacture high-quality wood chips .The raw material are logs,bamboo,tree branches,tree barker,sawmill leavings,waste veneer sheet and the non-wood material such as sugarcane,reed and crops.

It is widely used biomass power station,biomass pellet plant,fuel boilers, paper mill,fiber board plant ,organic fertilizer plant and so on.This kind of machinery can be customized according to the customer’s requirements(the main power,capacity,number of knives,roller diameter, finished wood chip size and so on).

Technical Parameter Of Host System

Model FD218
Feeding Inlet Dimension 700*300mm
Blade Roller Diameter 800mm
Blade Roller Speed 556-888RPM
Capacity 8-12T/Hour
 Blade Quantity 2/3/4/5 pieces(As customers’ request)
Blade size 780*220*20mm
Blade material H 13 material
Max Processing Wood Diameter 300mm
 Electric Power 110KW
Wood Chipper Size 20-50mm(as customers’ requirement)

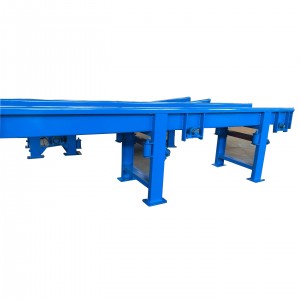

Technical Parameter Of Feeding System

Model FD218
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 4KW+3KW motor with reducer
Feeding Belt Width 700mm
Feeding Belt Length 6000mm
Feeding Speed 28-32M/Min

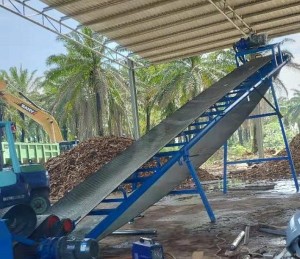

Technical Parameter Of Discharging System

Model FD218
Outlet Conveyor Belt 1Set
Outlet Motor 5.5KW
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10M*1M
Conveyor Material Nylon 4 Layer belt
Outlet Height 3800-4500MM







Intelligent Electronic Control System

Model FD218
Large Control Cabinet Ground
Host Start Model Star delta start
Electrical Control Control Cabinet + 2 sets Remote Control
Pump Station motor 3kw
wood chips
