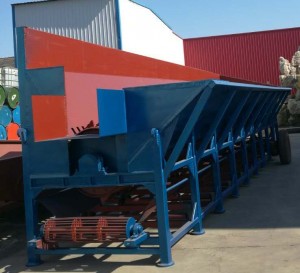

Log Debarker -single roller FD600

Short Description:

Product Name:Log debarking machine/Log debarker machine

Application:peeling the bark from the wood log

Model:Single roller debarker

Capacity(ton/hour):  3.5-4.5 ton

Diameter range of logs(mm)      :350-500

Power   :45kw or 55kw

Peeling rate:>95% (fresh)

Timber length range:1000-6000mm

Metal sheet thickness of External cabinet:10mm H steel

Discharging for bark transport (below) :12Meter belt conveyor ,motor power is 3kw

Discharging  for finished log(side):Side opening with hydraulic cylinder

Discharging rack for loading bark:6 meters length

Discharging rack motor :3kw


Product Detail

Product Tags

 Application :

The log debarking is a fundamental operation in log preparation field, its good results optimize the following operations of centering and peeling.Wood Log debarker is suitable for large, medium and small paper-making  mills,  wood processing plant, forestry factory, timber yard, artificial board factory and pellet mills. It can process EFB wood, eucalyptus , pine , rubber  and other kinds of raw materials you want to use. It is fit for peeling the bark from the big dimension logs.

Product Name:Log debarking machine/Bark  peeler

Application:peeling the bark from the wood log

Model:Single roller debarker

Debarking roller material :     508 seamless steel pipe ,thickness is 14mm

Capacity(ton/hour):  3.5-5ton

Diameter range(mm)      :350-500

Power   : 55kw

Peeling rate:>95% (fresh)

Timber length range:1000-6000mm

Metal sheet thickness of External cabinet:10mm H steel

Discharging for bark (below) :12Meter belt conveyor ,motor power is 3kw

Discharging  for finished log(side):Side opening with hydraulic cylinder

Hydraulic cylinder motor:3kw

Discharging rack for loading bark:6 meters length

Discharging rack motor :3kw

Certification:CE Certificate

After-sales Service Provided: Engineers available to service machinery overseas

Packaging &Delivery: Plastic wrapped or as the customer’s require LCL or FCL packed

LOGS

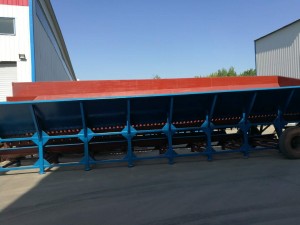

single debarker3
debarking logs

FACTORY WORKSHOP

2
4

CERTIFICATES

5
4
3
2
1
