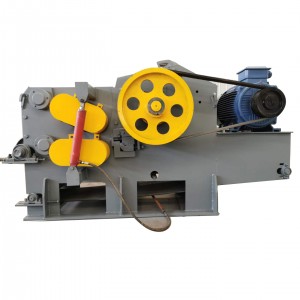

Drum Wood Chipper FD216-2

Short Description:

Product Name:Drum Wood Chipper


Power Type: Electric engine

Application:Cut wood log into chips

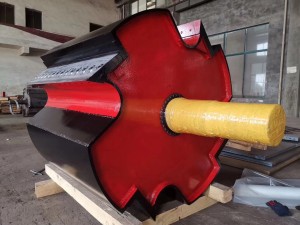

Rotor diameter: 650mm

Blade number:5 pieces (as customer’s requirement)

Feed-in size: 260*540mm

Process Log max diameter:180mm

Wood chip length:8-10mm(as customer’s requirement)

Main motor power:55kw

Production Capacity:1.5-2 ton/hour

Discharge way: belt conveyor

Product Detail

Product Tags

Application :

FD216 Wood chipper is a specialized machine for producing wood chips in wood factory, and widely used for preparing raw material in chipboard plant, fiberboard plant and paper-making plant.Raw material of FD216 Wood chipper is mainly undersized log, wood cutting residue (branch, twig) and wood processing residue (slab, batten, wood core, and waste veneer), as well as non-wood material (such as cotton stalk, corn stalk,reed,and bamboo.)
FD216 Wood chipper with diesel engine can be portable and featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.It is widely used in virgin forest without electric power.

Model Number: FD216 for powder

Rotor diameter: 650mm

Main motor power: 55kw

Blade number: 5 pieces

Blade size:600*185*20mm

Feed-in size: 260*540mm

Process Log max diameter:220mm

Wood chips length:8-10mm

Production Capacity: 1.5-2 tons per hour

Feed roller motor power:1.5kw+2.2kw

Primary discharge motor power:1.5kw

Secondary discharge motor power:3kw


Certification: ISO9001-2008 and CE Certificate

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas
