Production Detail:

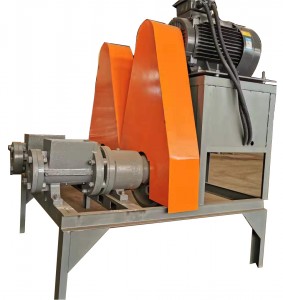

Model:FD-70

Capacity:240-360kg/h

Motor Power:22kw-6

Electrical heating:6kw

Life of the inner former:1-3 years

Weight:680kg

Dimension:1350*600*1600mm

Raw material:biomass wastes,sawdust,rice husk,peanut shell

Material moisture:8-12%

Shape of the charcoal:Hexagonal

Size of the charcoal: Dia.48mm*Length 450mm(according to the customer’s requirements)

Density of charcoal :1.5g/cm³

After-sales Service:Engineers available to service machinery overseas

Our Advantages:

1. This product has reasonable design, reliable manufacturing quality, simple structure, convenient operation, small size, labor saving and power saving.
2. The designed fully-automatic control electric heating device can randomly adjust the dry humidity of the materials, ensure the stability of the discharge molding, and improve the work efficiency.

3.Use Siemens Motor to improve the quality of our machines

4. It is suitable for the compression molding of various biomass raw materials, and has low energy consumption and high production efficiency.

5.Adopt CHINT BRAND components of electrical control cabinet

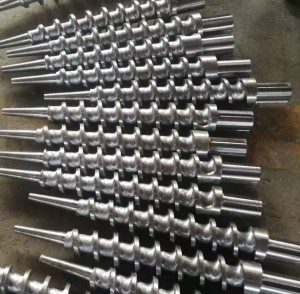

6.Screw propeller :adopt precision casting special wear-resisting material life for more than ten times higher than that of traditional thrusters.

7.Forming sleeve :adopts special formula alloy precision casting, life can be up to 3 month, improved the structure of the forming sleeves, so the friction between the machine and the raw material is reduced that the density of the salary rod is increased.

8. The main parts of this product are made of wear-resistant materials and are specially processed, so they can be continuously pressed for production and are durable.

9.Increase the screw pitch to increase the amount of feed, thereby greatly increasing the output.

Specification:
