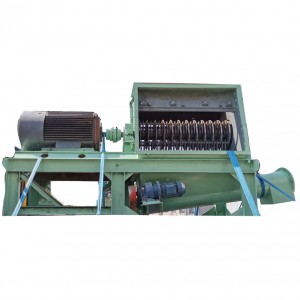

Sawdust Hammer Mill With Dust Collect System

Short Description:

Products Name:Sawdust Hammer Mill With Dust Collect System

Application:grinding the woodchips/crops  into  wood sawdust or power

Main Power:132kw

Diameter of Closed-air aspirator:500mm

Screen hole size:8/10mm or customized by customers

Capacity:3.5  ton/hour

Numbers of hammers:132 pieces

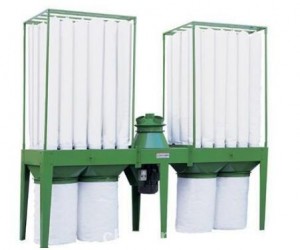

Dust removal system:Cyclone dust collector with baghouse

Product Detail

Product Tags

Product Detail:

Condition: New

Type: Sawdust hammer mill

Place of Origin: Shandong, China

Brand Name: Pengfuda

Model Number: FD65x1300

Power Type: Electric or diesel engine

Application:Grind wood chip into sawdust

Main motor power: 132kw

Raw material:wood chips,wood offcut,small branches

Production Capacity:  3-3.5 tons per hour

Certification: ISO9001-2008

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Packaging &Delivery:

Plastic wrapped or as the customer’s require LCL or FCL packed

Application :

The  sawdust hammer mill is a specialized machine for producing sawdust in wood factory.It is also widely used in the biamass fuel factory,organic fertilizer factory,animal husbandry and etc.

Raw material of sawdust hammer mill can be wood chips,wood offcut,corn cob and stalk ,as well as non-wood material (such as cotton stalk, pvc foaming board).


Model FD65*1000 FD65*1300
Main power 90kw 132kw
Capacity 2.5-3  ton/hour 3-3.5  ton/hour
Hammer Pcs 96 132
Screen hole size 8/10mm 8/10mm
Cyclone dust collector Diameter 1000mm 1200mm
