Wood chipper FD1680

Short Description:

Product Name:Disc Wood Chipper

Place of Origin: Shandong, China (Mainland)

Brand Name: Pengfuda

Model:FD1680

Power Type: Electric engine

Application:Cut wood log into customized size of chips

Disc Diameter:1650mm

Blade number: 4 pieces(as customer’s requirement)

Feed-in size: 500*500mm

Process Log max diameter:350mm

Wood chip length:30-120mm(as customer’s requirement)

Main motor power: 200kw

Production Capacity:14-18ton/hour

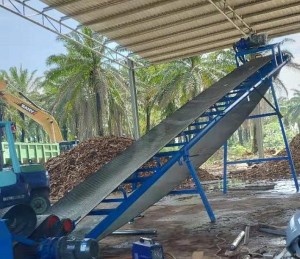

Discharge way: belt conveyor


Product Detail

Product Tags

Application :

Disc wood chipper is a specilized machine for producing the advanced wood chips which is widely used for the preparing raw material in pulp mill,paper plant,fiberboard plant and silicon smelt plant.

Disc Wood chipper applies for mainly cutting undersized log, wood cutting residue (branch, twig) and wood processing residue (slab, batten, wood core, and waste veneer), as well as non-wood material (such as cotton stalk, corn stalk,reed,and bamboo.).The length of the chips is processed as customers’ requirement.
Disc Wood chipper with diesel engine can be portable and featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.It is widely used in virgin forest without electric power.

Product Detail:

Condition: New

Type: Disc Wood Chipper

Model Number: FD1680

Power Type: Electric engine

Application:Cut wood log into chips

Dimension:4000*2000*2100mm

Weight:6000kg

Disc Diameter:1650mm

Blade number:4 pieces(as customer’s requirement)

Feed-in size: 500*500mm

Process Log max diameter:460mm

Wood chip length:20-35mm(as customer’s requirement)

Main motor power: 160-200kw

Production Capacity:14-18 ton/hour

Certification: ISO9001-2008 ,CE Certificate

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Packaging &Delivery:

Plastic wrapped or as the customer’s require LCL or FCL packed
