Biomass comprehensive crusher FD1650-600

Short Description:

Product Name:Biomass comprehensive crusher

Application:Crush waste wooden material into required size chips

Port:Qingdao Port

Supply Ability:50 Sets  per month

Applicable Industries: Manufacturing Plant,Farms,Home Use,Energy&Mining

Condition:New

Place of Origin:Shandong China

Brand Name:Pengfuda

Voltage:380v/400v/415v/440v

Power:200-250 kw

Dimension(L*W*H):9000*2300*2700MM

Certification:   CE certificate

Warranty:1 Year


Product Detail

Product Tags

Introduction:

Biomass shredder /crusher is applied for processing large waste wood pallets, furniture scrap, tree bark,core,wood branches and variety of non wood raw materials such as all kinds of bulk straw, cotton stalk, reed and other crop waste into required size chips . It can be matched with the unpacking machine.It is applied  for the biomass power station, pellet plant,paper plant,fiber board factory, pharmaceutical factory,chemical plant,organic fertilizer plant ,animal husbandry and etc.

It is an ideal equipment and best choice of the Biomass power station.It is widely used for the preparing raw material in the industrial boiler, bio-power plant and pellet  factory.

It contains feed-in system,working system,discharge sysytem and advanced electronic control system.It is featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.

Type: Drum Wood Chipper

Model Number: FD1650-600

Power Type: Electric

Application:building templates,waste wood material,tree bark,waste plywood,offcut,branches,corn stalk

Discharge mode:belt conveyor

Certification: CE Certificate

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Feed-in system parameter

Working system

Type grooved chain plate transmit Rotor diameter 900mm
model FD1650*600 capacity 18-25 ton/hour
Feed-in power 7.5kw+11kw Feed-in size 1650*600mm
Chain plate width 1650mm Main power 200-220kw
Transmit length 5000mm Chip length 50-150mm
Transmit speed 2-18m/min Alloy hammer/blade 20 pieces4-6pieces



FACTORY WORKSHOP

Product advantages:

1. A wide range of crushable raw materials can be crushed or shreddered

2. High production capacity and low energy consumption, reasonable structure, durable, simple operation, high degree of automation, easy maintenance.

3. Significant labor and working time are saved by using the grab feeding.

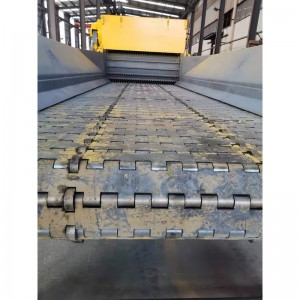

4. The feed is conveyed by a chain plate, thereby reducing frequent replacement of the feed conveyor belt.

5. The size of finished wood chips can be changed according to customer's requirements.
