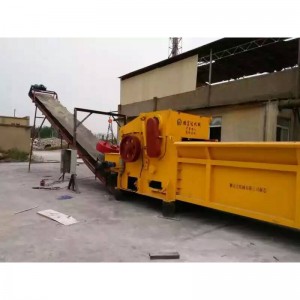

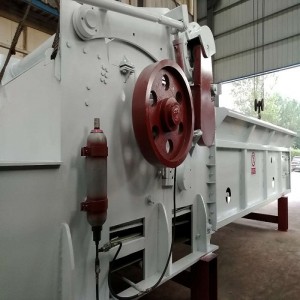

Biomass comprehensive crusher FD1400-500

Short Description:

Product Name:Biomass comprehensive crusher

Model:FD1400-500

Power Type:Electrical engine/Diesel engine

Application: All kinds of waste wooden material,crops and crop waste

Main Motor Power:160-200KW

Roller style:Blade or hammer

Feeding opening size:1400-500mm

Feeding conveyor length:4700mm

Feeding Motor:5.5kw+7.5kw

Pump Station:Hydraulic  solenoid valve

Discharge Motor:4kw+5.5kw

Discharge rack length:10000mm

Finished chip size:50-100mm

Capacity:12-15 ton/hour


Product Detail

Product Tags

Product Detail:

Condition: New

Type: Drum Wood Chipper

Place of Origin: Shandong, China (Mainland)

Brand Name: Pengfuda

Model Number: FD1400-500

Power Type: Electric

Application:building templates,waste wood material,tree bark,waste plywood,offcut,branches,corn stalk

Dimension: 9600mm x 2600mm x 3100mm

Discharge mode:belt conveyor

Certification: ISO9001-2008

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Feed-in system parameter

Working system

Type grooved chain plate transmit Rotor diameter 800mm
model FD1400-500 capacity 12-15 ton/hour
Feed-in power 7.5kw+5.5kw Feed-in size 1400*500mm
Chain plate width 1400mm Main power 160-200kw
Transmit length 5000mm Chip length 50-100mm
Transmit speed 2-18m/min Alloy hammer

Blade

20 pieces

4-6pieces

Packaging &Delivery:

Plastic wrapped or as the customer’s require FCL packed

Application :



FD1400 Comprehensive Crusher is a specialized machine applied for building templates,waste wood material,tree bark,offcut,branches and other stalks.

It contains feed-in system,working system,discharge sysytem and advanced electronic control system.It is featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.

It is an ideal equipment and best choice of the Biomass power station.It is widely used for the preparing raw material in the industrial boiler,panel mill and biomass power plant.
